1. INTRODUCTION

In aviation, the gas turbine has found wide application due to the relatively high efficiency of the energy conversion process, amounting to 30–45%. Its most important feature is the high operating temperature of the blades. Nickel-based superalloys are widely used due to their particular combination of very good mechanical properties and good structural stability at high temperatures [1÷3]. However, increasing the operating temperature of blades made of nickel superalloys is limited. This is due to the barrier of reducing the heat resistance of the superalloy in the presence of high exhaust gas temperature. A number of measures are taken to reduce the temperature of the blade superalloy, such as allowing internal cooling and applying coatings [4÷11].

During the operation of gas turbine blades, and especially the rotor blades of the manoeuvring aircraft engine, the blades are subjected to complex stress and thermal loads, as well as oxidation and hot corrosion processes. Extreme and complex operating conditions of the blades may intensify the basic destructive processes, which mainly include: creep, overheating and melting, corrosion and fatigue cracking, intergranular and thermal corrosion, low- and high-cycle fatigue: thermal and thermo-mechanical, erosion, and burnout [13÷16]. Among the factors that degrade the blades, high operating temperature is of particular importance, as it rapidly accelerates the diffusion processes taking place in the blades. Under operating conditions, an excessive increase in exhaust gas temperature, which has a long-term effect, has a destructive effect on the technical condition of the blades [17÷22]. It is closely related to the material criterion, because the strength properties of superalloys are an appropriate microstructure that is not subject to weakening changes during operation, which is the main criterion for the durability of gas turbine blades [1, 3, 22÷26].

The process of destruction of blades during operation begins with the destruction of the coating, which is the first barrier of "contact" of exhaust gases (high temperature, pressure, chemical interaction) with the blade surface. High-temperature, highly oxidizing environments contain large amounts of chemical impurities. Therefore, heat-resistant coatings are mainly characterized by high resistance to high-temperature corrosion in a gaseous environment. Other features include low thermal conductivity and high structural stability [8, 11, 17]. To protect blades made of nickel alloys, mainly heat-resistant coatings made of metal alloys are used: (Ni, Co)-Cr-AI-Y or AI-Si-Ni-Y. Among the aluminium compounds that are created during the coating process, the intermetallic phase β-(NiAl) turns out to be the best compromise because it is a very good mix of mechanical properties and is characterized by high resistance to high temperatures [8, 11, 17]. In order to increase the thermal stability of this phase, the composition of the covering material is supplemented with alloy additives. Under operating conditions, a layer of aluminium oxides Al₂O₃ is formed on the surface of the β-NiAl layer, significantly reducing the oxidation rate. Degradation of the coatings occurs as a result of diffusion processes causing oxidation and an increase in the thickness of the oxide layer, as well as the progressive burning of alloy additions from the coating material, which impairs the self-regeneration capabilities of the coating (healing of micro-damages). Depletion of the covering material may also be caused by the diffusion of alloy additives into the substrate [4, 11, 27].

Assessment of the technical condition of turbine blades is a very important aspect in the process of operating aircraft turbine engines and is carried out using various techniques and methods [28, 29]. One of the techniques developed by M. Bogdan et al. [30÷32] is the possibility of assessing or computer-aided assessment of the technical condition of the blades based on operational colour changes of the blade coating surface.

In this context, one of the main goals of this work was to describe the structural changes in both the coating and the alloy, reflecting a significant deterioration in the technical condition of the test object defined on the basis of the material criterion. This approach is important for specifying the procedure of the proposed non-destructive testing (NDT) for operational blades.

The article examined in laboratory conditions in the environment of exhaust gases the influence of increased temperature (outside the nominal operating range of the blades) on the modification of the alloy material as well as the condition of the coating of the blades made of the EI-867 WD alloy with a diffusion-applied aluminized coating. In section 2, the research object (the method of its production and selected features) and the implementation of the experiment were characterized. Section 3 specifies the changes occurring in the coating in terms of changes in surface roughness, its chemical composition, morphological structure and coating thickness. Section 4 draws attention to selected aspects related to the change of the alloy structure. Changes in grain size, carbide precipitates and the strengthening γ' phase were determined. Section 5 discusses the test results in the context of linking material changes in the blades with the deterioration of strength properties In section 6, practical implications of the findings and their limitations are outlined. The final part of the article contains final conclusions.

2. CHARACTERISTICS OF THE TESTED OBJECT AND DESCRIPTION OF THE EXPERIMENT

A set of new blades (Fig. 1) from one production batch was used for laboratory tests. Five blades were exposed to temperatures ranging from 1123K to 1523K, every 100K, by heating them for two hours in an FCF 60 chamber furnace filled with continuously generated aviation kerosene exhaust gases. Cooling took place in the furnace. The heating time and temperature affect both coagulation and the growth kinetics of γ' phase particles, as well as modifying the thickness of the blade's protective coating. The duration of temperature exposure was selected experimentally based on the results of the analysis of data obtained from the operational flight parameter recorder of the Ts-11 Iskra training aircraft (with an SO-3W turbojet engine installed). The profile of the flights performed and the engine service life of 400 hours were taken into account. Additionally, based on the metallographic tests carried out, it was found that the differences between heating for 2 hours and 3 hours at a temperature above the maximum temperature after the turbine, i.e. 1323 K, do not significantly affect the change in the coating thickness or the average particle size of the γ' phase.

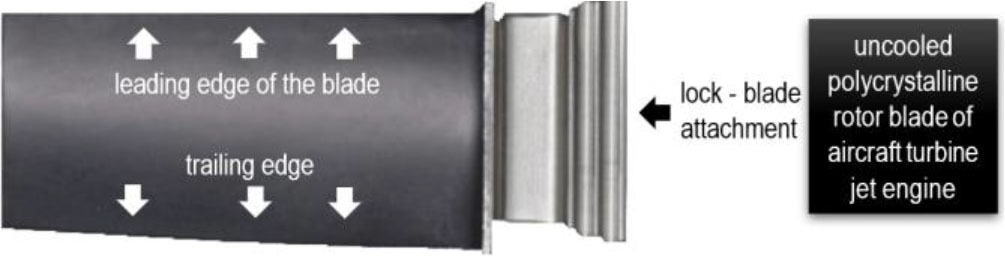

Fig. 1.

Example of blade convex (suction face) surfaces

The EI–867 WD alloy is characterized by a structure typical of nickel superalloys. It consists of carbides, γ phase and γ' reinforcing phase and borides. The γ phase is a solid solution in nickel of elements such as chromium, molybdenum, aluminium, cobalt and tungsten. The relative volume of the γ' phase (Ni₃Al), which takes the shape of cubic particles, does not exceed 31–34%. The distinguishing feature is that the EI-867 WD alloy (chemical composition given in Tab. 1) does not contain titanium. In addition, it is characterized by a lower chromium content compared to other superalloys, which translates into greater susceptibility to corrosion. Therefore, elements made of these alloys require protective and insulating coatings. They are produced using thermochemical treatment, i.e. in the aluminization process. Aluminizing is carried out using the out-of-pack method at a temperature of 1223 K and for 12 hours.

The desired properties of the alloy (increase in mechanical strength, yield strength with increasing temperature, corrosion resistance required in special, demanding working conditions) are formed in a complex technological process of alloy production and include heat treatment involving precipitation hardening. Heat treatment includes supersaturation and aging. Supersaturation takes place at a temperature of 1473±283 K for 4 to 6 hours, causing the dissolution of some carbides and intermetallic phases in the matrix. Cooling in air during supersaturation leads to the separation of small particles of the γ' phase, the relative volume of which is approximately 20%. The aging process affects the further secretion of γ' phase particles and the growth of previously isolated particles. Among the carbides whose relative volume in the alloy does not exceed 2%, the M₂₃C₆ carbide dominates. It is formed during heat treatment or is released during operation, usually at the grain boundaries in the temperature range of 933 K ÷ 1253 K. M₆C carbide occurs inside the grains [25].

3. STUDYING THE BLADE COATING MICROSTRUCTURAL CONDITION

Surface roughness tests

One of the parameters, the value of which can change due to blade heating at different temperatures is surface roughness. It is defined as a non-conformity or deviation from the product profile assumed in the drawing. This parameter is measured at small surface sections. It is described by two basic parameters: R_a and R_z [8]. The Ra parameter is privileged in testing and is most often measured. There is the R_z≈4R_a relationship between these parameters. The 2D assessment of the surface geometric structure was conducted in the blade ridge area, using a PGM-1C profilometer with a BS 1000-10-1 WAT head. To define the surface profile, its roughness in the form of profile ordinate arithmetic means (R_a, R_z) were determined.

A sample roughness profile measured on the ridge in the middle part of a new blade profile is shown in Fig. 2. Based on the obtained measurement data presented in the form of graphs (Figs. 3 and 4), the authors concluded that heating temperature increase entails a decrease in R_a and R_z roughness first for a temperature of 1223 K and 1323 K, followed by a clear increase of said parameters at a temperature of 1523 K.

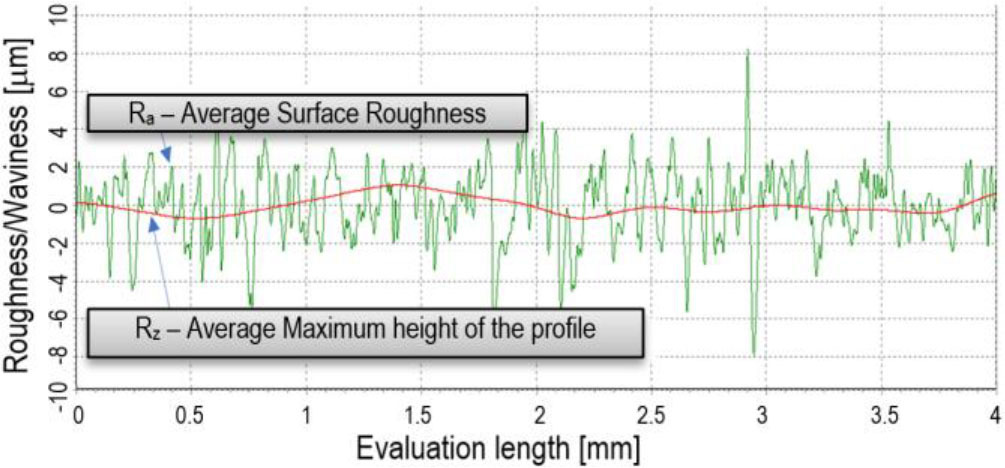

Fig. 2.

Sample roughness and undulation profile – new blade

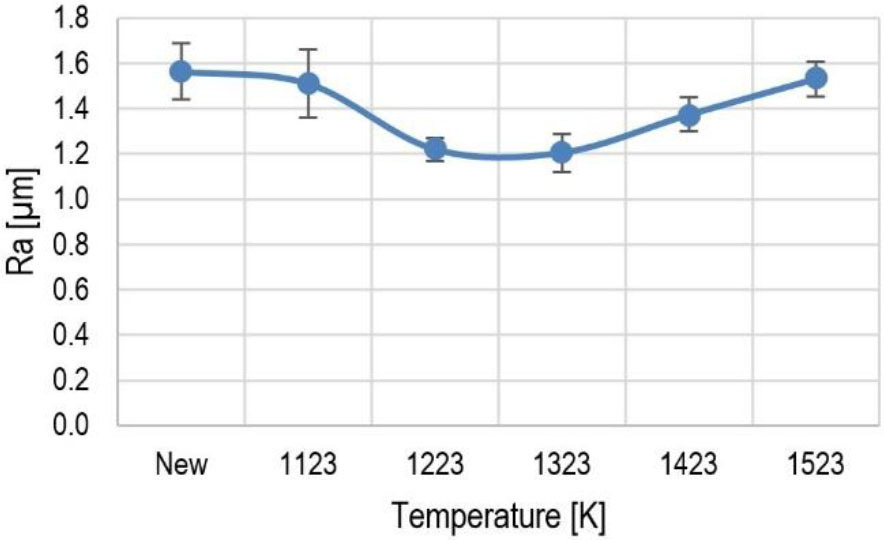

Fig. 3.

Impact of heating temperature on roughness profile changes – Ra

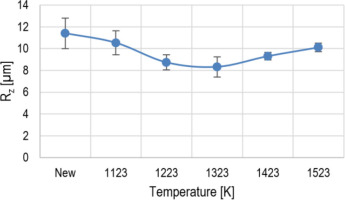

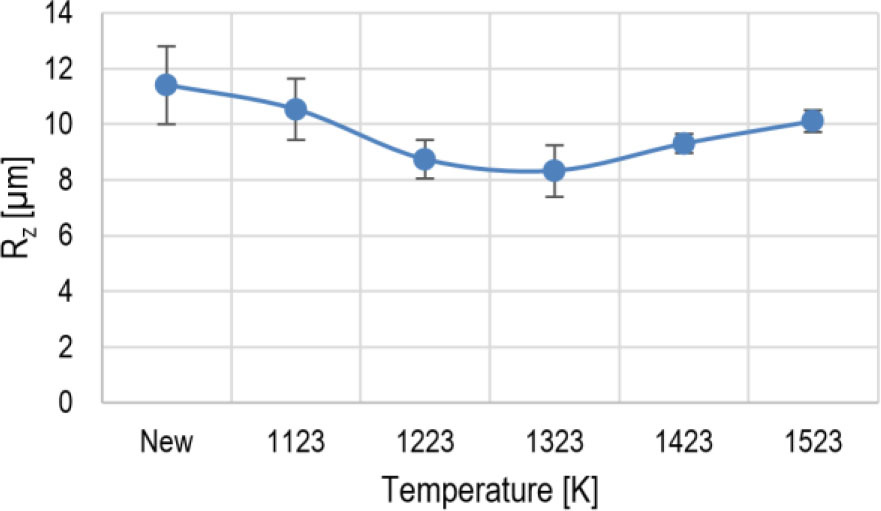

Fig. 4.

Impact of heating temperature on roughness profile changes – Rz

The recorded roughness changes directly translate to changes on the surface of the analysed blades under the influence of temperature and the environment. Based on the conducted microscopic examinations, chemical composition and surface distribution testing related to the elements, it was concluded that scale made of an external aluminium, nickel and chromium oxide layer and fuel combustion products is formed on the surface of the described alloys.

Surface structure tests

The surface morphology of the analysed blades was tested and microstructural changes within the coatings were observed using a high-resolution scanning electron microscope Quanta 3D FEG. Quanta 3D FEG combines emission scanning electron microscope (SEM) with focused ion beam (FIB). It was concluded that scale was formed on the surface, leading to very significant morphological changes (imaging of surface topography using backscattered electrons (BSE) and topographic separation (BSETOPO)) - Figs. 5 ÷ 10. The surface of the new blade is relatively undeveloped with few defects in the scale formed on it. Cracks and delamination of the scale were observed in a few areas. As the heating temperature increases, on the one hand, the scale increases, which causes its delamination and, consequently, falling off. In this case, the morphological changes of the surface are caused by coagulant oxides forming on the scale surface, especially visible in Fig. 8b. A further increase in temperature only accelerates this process, causing the scale to fall off and, as a consequence, the native material is exposed (compare Fig. 5 with Fig. 10). It was found that increasing heating temperature on the surface of the analysed blades leads to the formation of, mainly, Al₂O₃ and NiO oxides (Fig. 11). They form a surface layer protecting against further oxidation. The Al₂O₃ oxide has a morphologically heterogeneous structure and a tendency to uneven growth and exfoliation, which reduces roughness at higher heating temperatures. Furthermore, there were areas observed on blade surfaces that are highly rich in carbon and sulphur, the presence of which is directly associated with aviation fuel components. The most undesirable aviation fuel component in this case is surface layer sulphur, which can occur in free or bound form (e.g., sulphides, disulphides, hydrogen sulphide and other). Furthermore, it was found that sulphur-enriched areas have products of partial or complete fuel combustions, e.g., SO₂, SO₃, H₂S, etc., which cause the formation of sulphides based on the coating material.

Fig. 5.

Blade surface morphology - new, not heated: a) BSE-TOPO; b) BSE

Fig. 6.

Blade surface morphology at 1123 K: a) BSE-TOPO; b) BSE

Fig. 7.

Blade surface morphology at 1223 K: a) BSE-TOPO; b) BSE

Fig. 8.

Blade surface morphology at 1323 K: a) BSE-TOPO; b) BSE

Fig. 9.

Blade surface morphology at 1423 K: a) BSE-TOPO; b) BSE

Fig. 10.

Blade surface morphology at 1523 K: a) BSE-TOPO and b) BSE

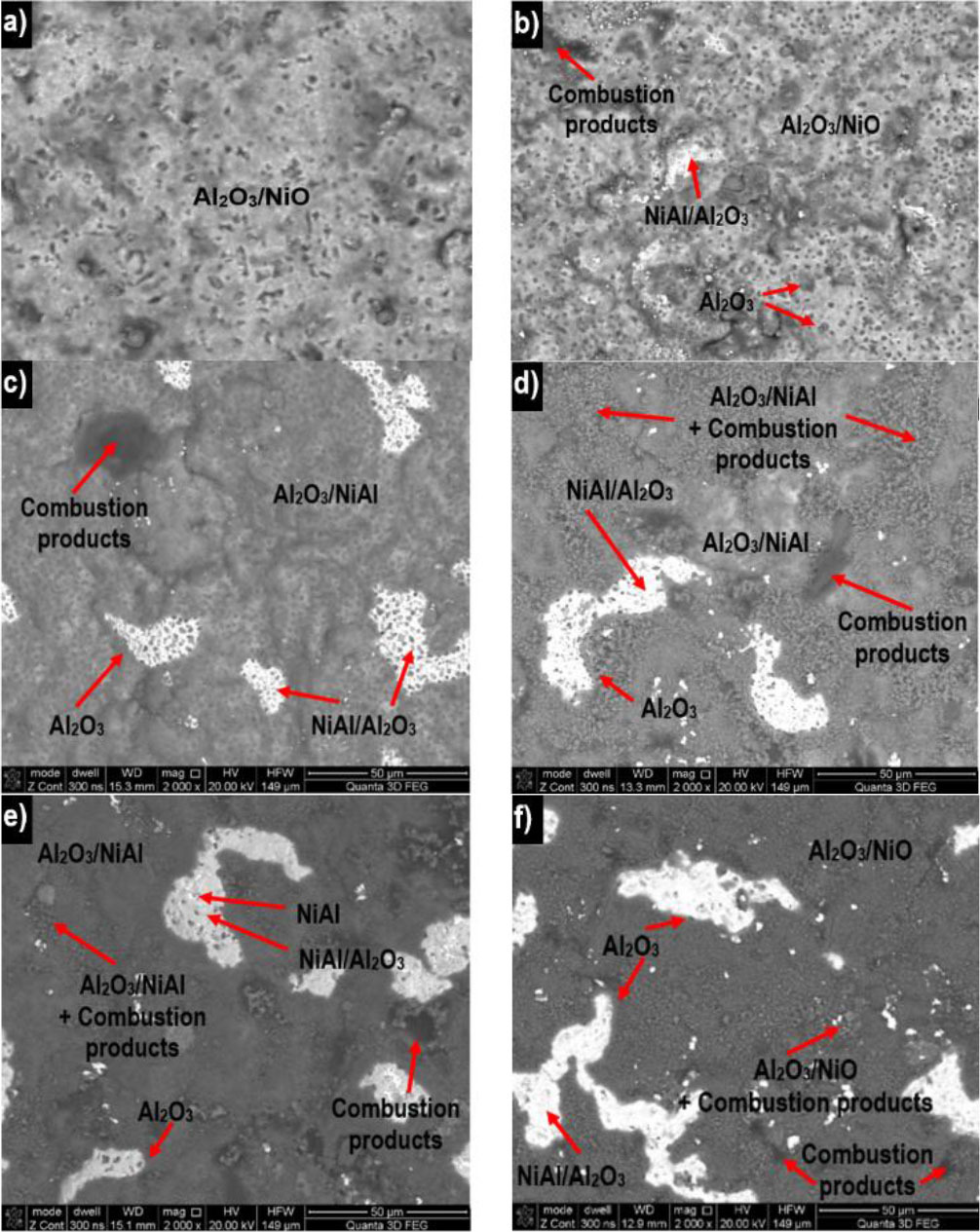

Fig. 11.

Blade surface morphology: a) new; b) 1123 K; c) 1223 K; d) 1323 K; e) 1423 K; f) 1523 K

3.3. Area share of elements and oxides

Recorded structural changes ongoing on the surface of the analysed blades under the impact of temperature lead to very significant difference in the chemical and phase composition. It was found, among others, that a blade heating temperature increase results in considerable changes in the content of individual surface elements, primarily oxygen, chromium, nickel and carbon (Fig. 12–13). The observed changes are confirmed by independent EDS (Energy Dispersive Spectroscopy) and element mapping testing.

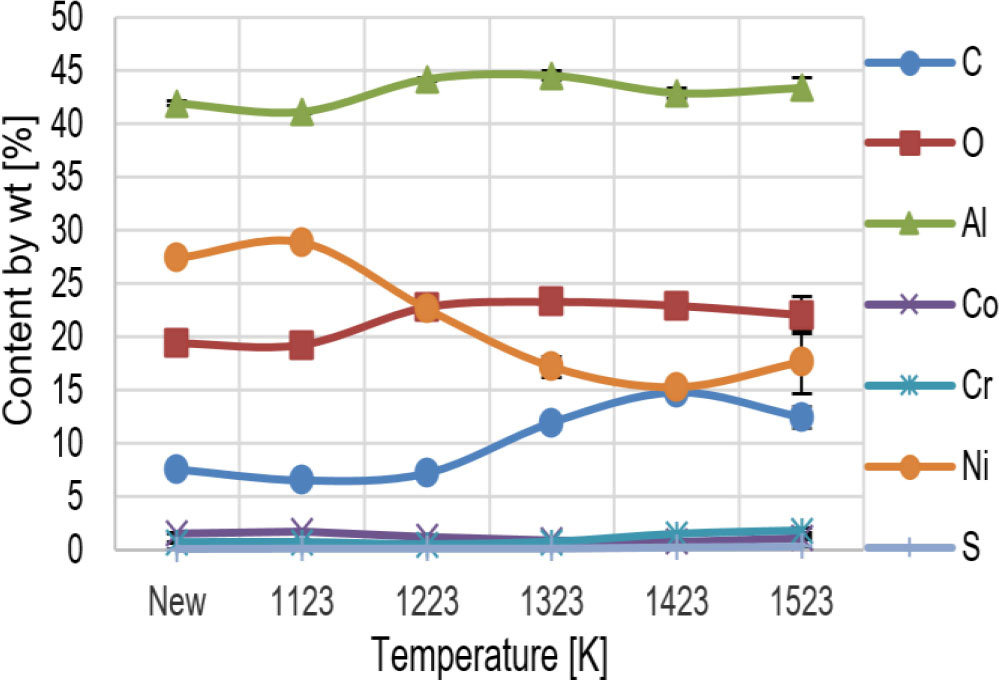

Fig. 12.

Percentage share by weight of elements on the surface of tested blades – (SEM/EDS)

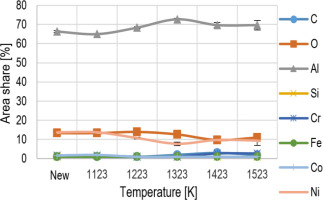

Fig. 13.

Percentage share of elements on the surface of tested blades – element mapping method

Changes in the content of individual elements also translate to phase changes. They are particularly emphasized if we analyse the impact of temperature on the percentage content share of oxides on the surface of tested blades (Fig. 14). Based on the obtained data, it can be clearly seen that with increasing temperature, the mass oxide share reaches its maximum for a blade heated at 1423 K. In this case, the total oxide share exceeds 50% of the weight content. Furthermore, the recorded changes in oxide share directly translate to changes in their type. The impact of temperature on nickel oxide share changes is particularly noticeable in this case (Fig. 15). NiO content share changes impacted by temperature are primarily associated with the creation of the Al₂O₃ scale on the surface of the analysed blades.

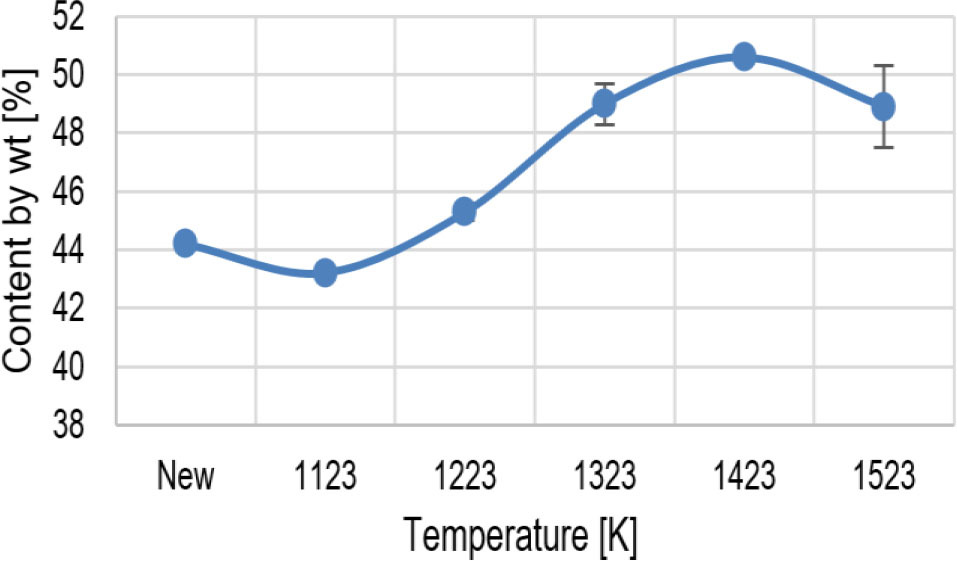

Fig. 14.

Total percentage share of oxides measured on the surfaces of tested blades

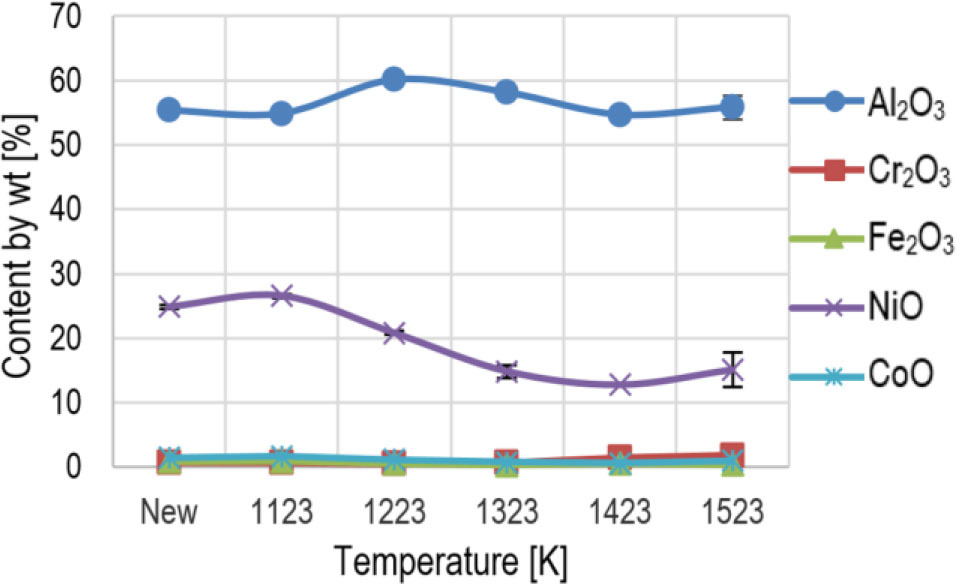

Fig. 15.

Percentage share of individual oxides measured on the surfaces of tested blades

Microstructural tests

Thickness measurements were conducted using computer software for processing and analysing images from a Quanta 3D FEG microscope. Coating thickness was measured at characteristic blade locations, i.e., its edge of attack, trough surface and blade ridge – both inside and near the blade vane profile trailing edge. This provided an averaged aluminium thickness layer for each recorded (analysed) image (Fig. 16). Measured coating thickness values of a new blade (not heated) and a blade heated at different temperatures are shown in Fig. 17.

Fig. 16.

Blade coating microstructures by heating temperature: a) new; b) 1123 K; c) 1223 K; d) 1323 K; e) 1423 K; f) 1523 K

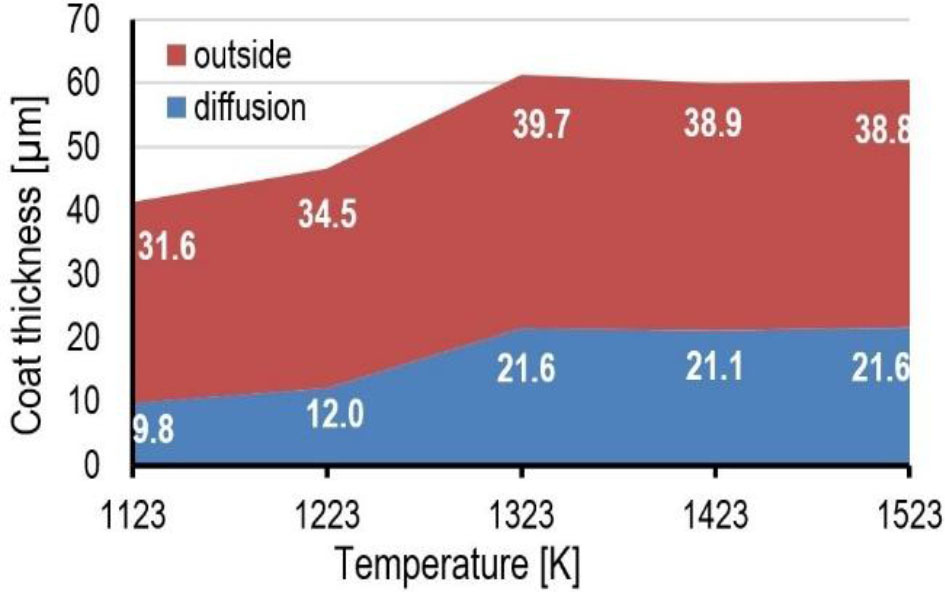

Fig. 17.

Changes in the thickness of the external and diffusion coating exposed to different temperatures

Elemental composition of the internal and diffusion layers

The tests demonstrated that increased blade heating temperature leads to significant changes in the content of individual coating elements, nickel, chromium and aluminium in particular. Cumulative test results for a new blade and blades heated at 1123 K – 1523 K are shown in graphs (Figs. 18 and 19).

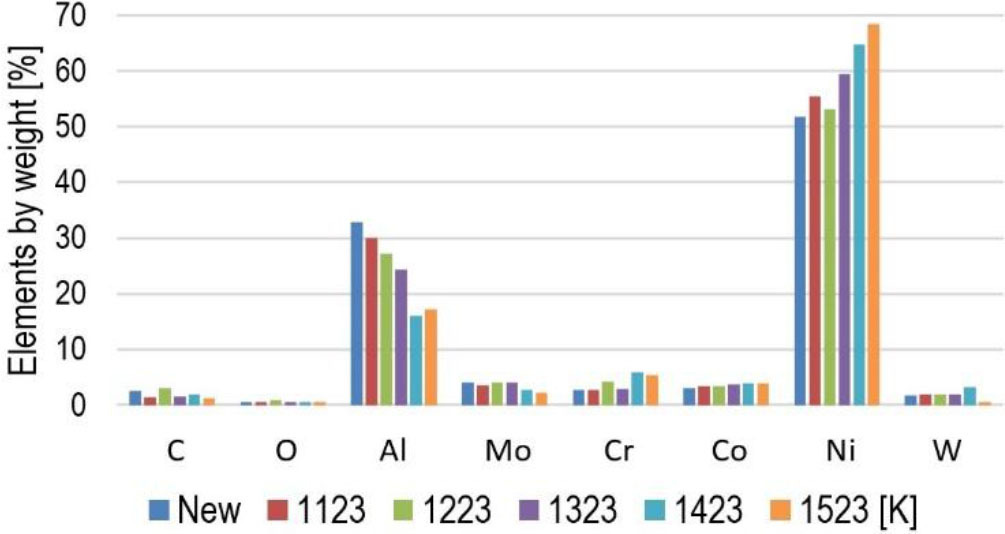

Fig. 18.

Chemical composition of the external coating part of a new blade and heated blades

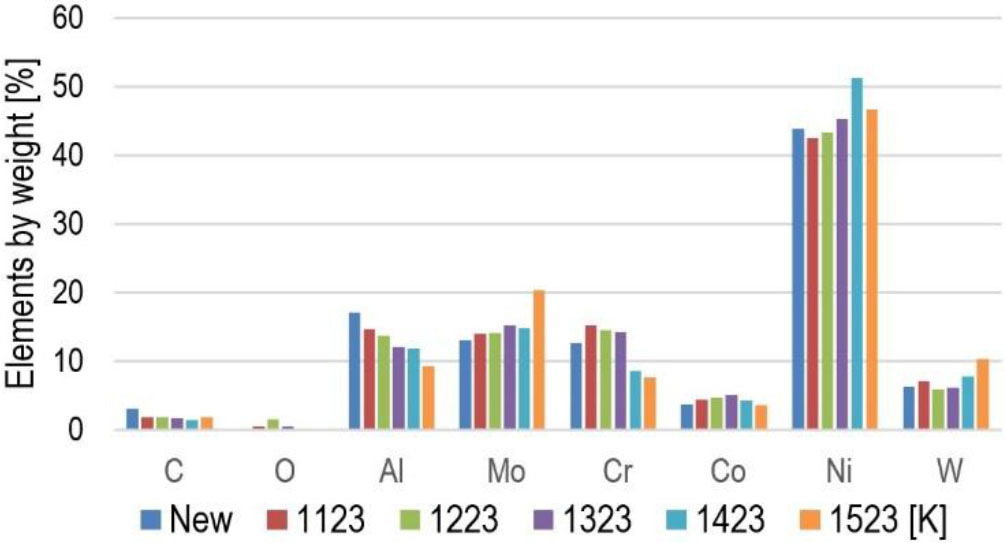

Fig. 19.

Chemical composition of the diffusion coating part of a new blade and heated blades

4. MICROSTRUCTURAL TESTS OF THE BLADE EI-867 WD ALLOY

Grain size tests

Metallographic microsections were tested under a Nikon MA-200 optical microscope and a Quanta 3D FEG and XL30 LaB6 scanning (SEM) microscopes by Philips. Using NIS Elements AR material microstructure image analysis software, the authors determined the mean size (area) of the alloy grain and reinforcing phase γ’, expressed as the diameter of a circle with an area equal to the surface area of the measured object (Eqdia=sqrt(4*Area/π)). Images depicting alloy grain size by heating temperature can be seen in Fig. 20, and a change in its average size as a heating function can be seen in the graph in Fig. 21.

Fig. 20.

Blade alloy grain size by heating temperature: a) new; b) 1123 K; c) 1223 K; d) 1323 K; e) 1423 K; f) 1523 K

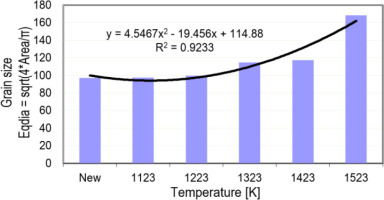

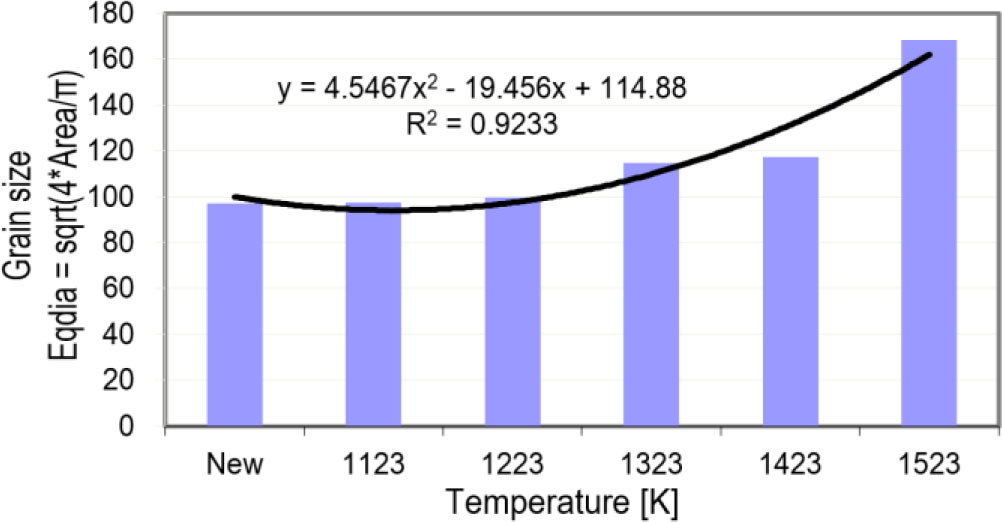

Fig. 21.

The dependence of a change in the average blade alloy grain size on heating temperature, expressed by an equivalent diameter of a circle with an area equal to the grain surface area

Reinforcing γ’ phase and carbide precipitate tests

The presence of carbides, even in a non-heated blade, can be observed in the alloy microstructure. Carbide content increases during heating, especially on grain boundaries. Carbides are stand-alone and in the form of “Chinese writing”. A change in the γ' precipitate morphology was also found. The exposure of turbine blade alloy to high temperature also impacted their microstructural change, leading to a modification and distribution of the dispersive γ' phase. Fig. 22 shows sample images of microsections demonstrating the phase γ' precipitate morphology and the presence of stand-alone carbides. Based on analysing the microsections, the authors calculated a percentage content of individual phase γ' size classes in the blade alloy (Fig. 23) and the content of average-sized precipitates of this phase (Fig. 24).

Fig. 22.

Blade alloy phase γ’ precipitate morphology by heating temperature: a) new; b) 1123 K; c) 1223 K; d) 1323 K; e) 1423 K; f) 1523 K

In the course of heating, the reinforcing γ' phase experiences significant changes, and its structure is modified (Fig. 23). A temperature of 1123 K favours the growth of phase γ’ particles.

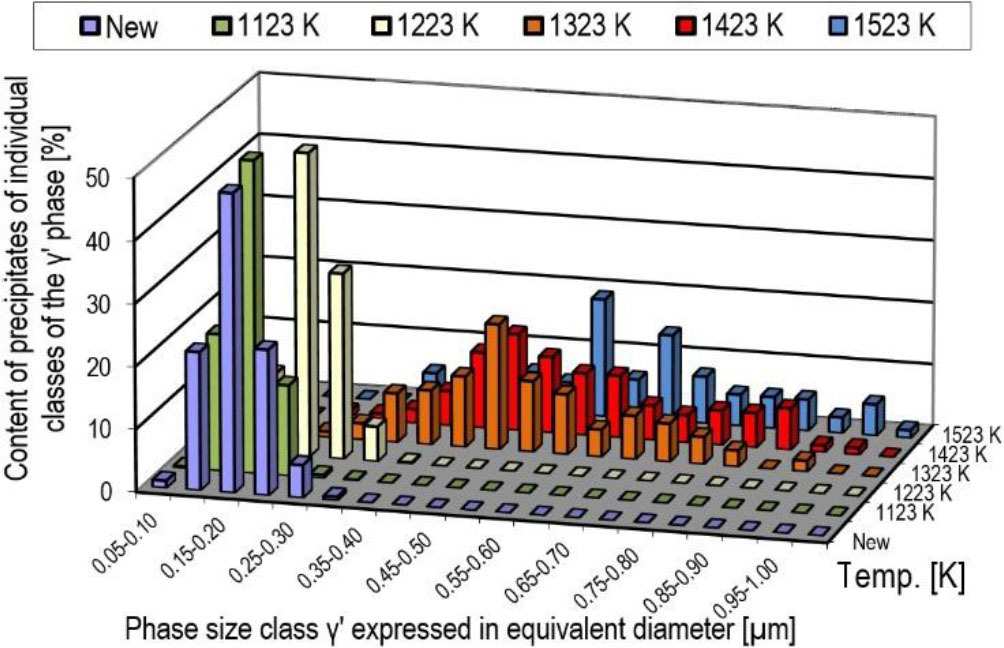

Fig. 23.

Percentage precipitate content of individual phase γ' molecule size classes in the alloy

The average size of this phase molecules increases at a temperature of 1323 K (Fig. 23, Fig. 24). While at 1423 K, due to coagulation, the molecules with the largest initial dimensions increase (Fig. 23, Fig. 24).

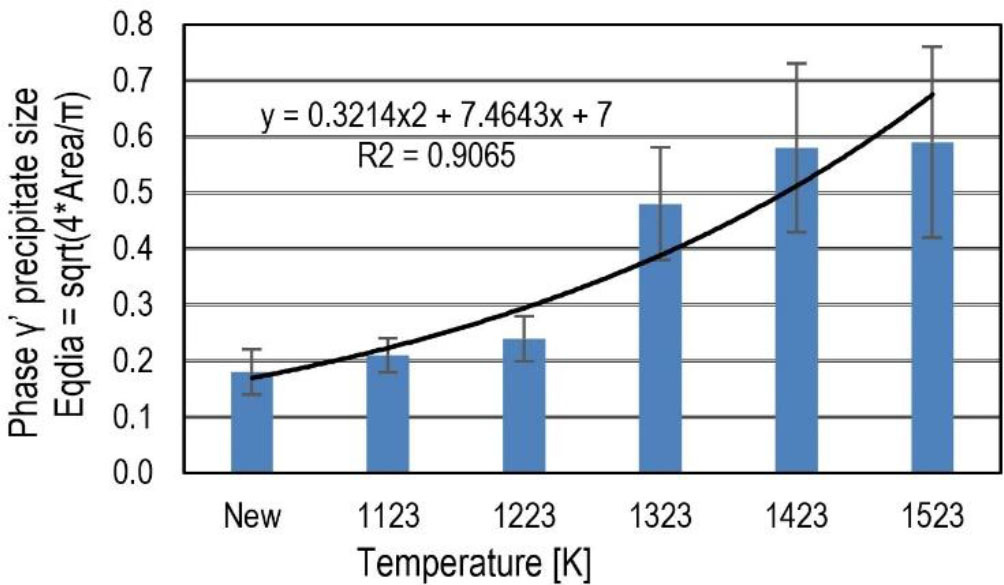

Fig. 24.

Dependence of the average phase γ' precipitation in the alloy

It was found that temperature increase entails a reduction in the number of molecules with the largest dimensions relative to material microstructure changes in a new blade and a blade heated at 1123 K (Fig. 23). An increasing distance between γ' phase molecules is simultaneously seen. The observed growth, merging and wavy shape of the γ' phase particles are characteristic of an overheated alloy and significantly reduce its heat resistance. Assuming the change in the phase γ' precipitate structure (Fig. 25) as a material criterion that enables further operation of the material, one can determine the suitability threshold for their further operation. According to the test results, after the temperature exceeds 1223 K and after an even relatively short exposure time, an intensive growth of the γ’ precipitate occurs due to the bonding of fine-grained cubic phase γ’ molecules into lamellas. This leads to the loss of cubic shape stability and the formation of irregular and undulated lamellas (Fig. 25).

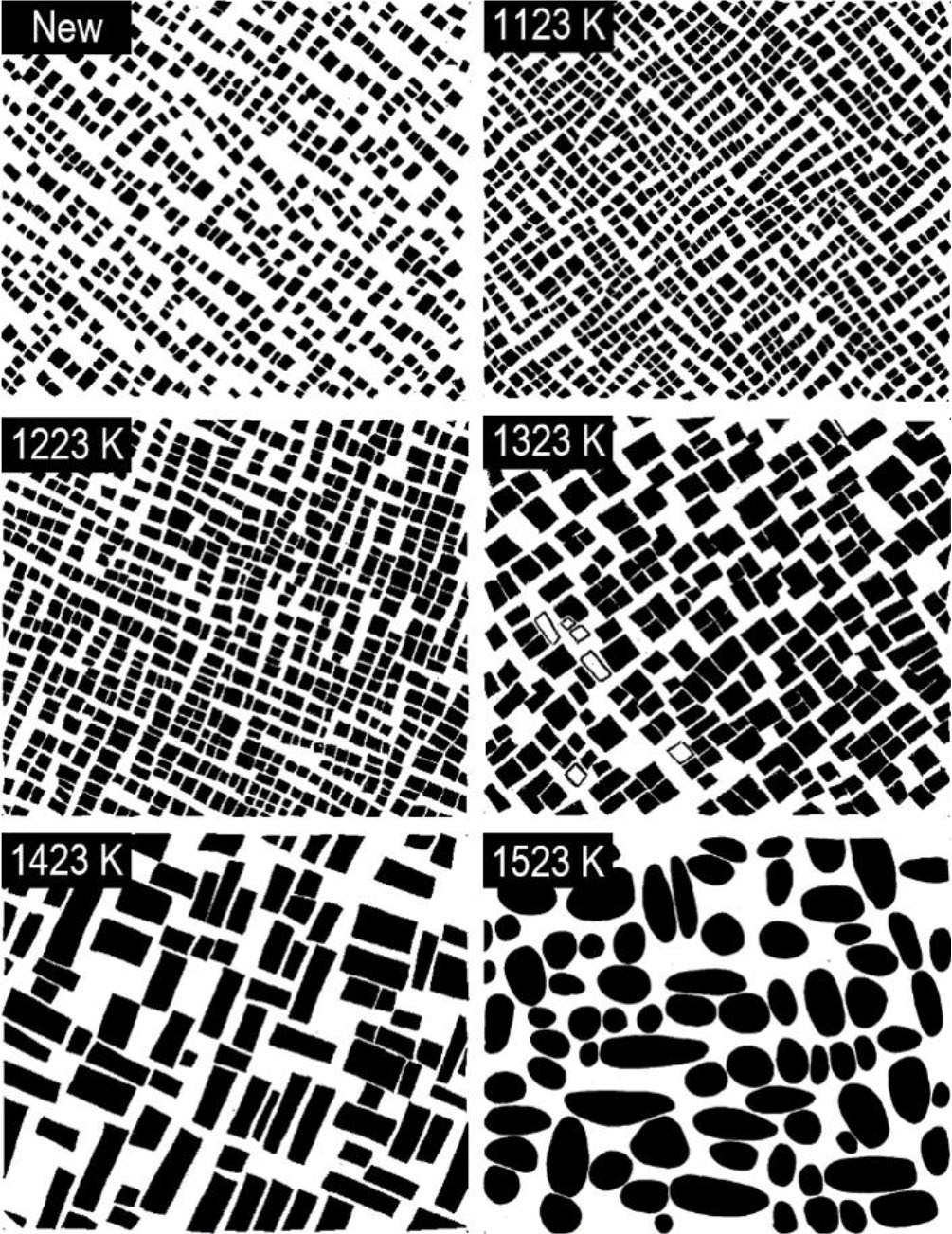

Fig. 25.

Phase y’ precipitate microstructure of a new blade and heated blades (20000x zoom) – with visible coagulation, change of shape from cubic to irregular and phase precipitate undulation

5. DISCUSSION OF TEST RESULTS

In the course of the tests, it was found that coating surface morphology, as well as the chemical composition microanalysis spectrum and results indicate that these values significantly, and above all adversely, changed after heating. In the article [33] for the same material but under different experimental conditions, based on SEM/TEM studies in connection with the possibility of strengthening the physical basis of non-destructive testing of blades, microstructural processes occurring in the upper, most external layer of the coating were identified. It was found that above the temperature of 1223 K, a layer of aluminium oxide Al₂O₃ is formed, the microstructure of the coatings is coarsened, pores are formed, Fe and Cr diffuse to the surface and Fe-Cr particles are formed and subsequently coarsened on the surface of the aluminium oxide layer. In the context of non-destructive inspection of blades exposed to high temperatures, the last process mentioned above is of particular importance, because it explains the changes in the light reflected from the blade surface.

The impact of increasing temperature causes the R_a and R_z roughness parameters initially decrease up to a temperature of 1223 K, followed by a slight increase up to 1323 K. The increase in R_a and R_z parameters is caused by the growing thickness of the heat-resistant coating, which considerably impacts the deterioration of its heat and corrosion resistance. Furthermore, various Al₂O₃ and NiO oxides are formed on the blade coating surface together with increasing heating temperature. Aluminium oxide protects the coating surface against further oxidation. It has a morphologically heterogeneous structure and a tendency to uneven growth and exfoliation. Fluctuations in the parameters determining surface roughness are related to the processes of thermal softening, oxidation and microstructural changes. The presence of areas highly rich in carbon and sulphur was found on the coating surface. Their occurrence is directly associated with aviation fuel components. The most undesirable aviation fuel component is sulphur, which can occur in free or bound form of sulphides, disulfides and hydrogen sulphide. In the course of tests, the authors found that the total percentage share of oxides on coating surfaces initially grows, followed by a decrease at the highest heating temperature. The percentage weight share of the elements making up the coating is modified due to heating. A significant content difference can be seen, primarily in relation to the following elements: W, Mo, Ni and Al.

When testing the EI-867 WD alloy, it was found that MC carbides appeared when producing the blades in the alloy. They were found as stand-alone and in the form of “Chinese writing”, mainly at grain boundaries. Carbides of such type can cause instabilities that reduce plasticity at low temperatures. The second of the identified carbides, M₆C, is more stable at higher temperatures. The M₆C carbide was mainly observed near grain boundaries. The next carbide. M₂₃C₆, precipitates during low-temperature heat treatment or in the course of alloy operation at temperatures from the 1033 K – 1253 K range. It is shaped as large, irregular precipitates at grain boundaries, in the form of lamellas or polygons. A M₂₃C₆ carbide significantly impacts nickel-based superalloy properties. Grains grow in the alloy, which adversely impacts its mechanical properties. The observed transformation of M23C6 carbides into M6C in an alloy exposed to prolonged high temperatures (above 1223 K) is related to the diffusion of atoms, primarily molybdenum and tungsten present in the tested alloy, into the carbide structures. This high-temperature transformation from M₂₃C6 to M₆C leads to a decrease in creep resistance, as the process reduces the amount of stable reinforcing particles along the grain boundaries. Larger and less homogeneous M₆C carbides limit the alloy’s ability to resist deformation under creep conditions. Additionally, the growth and transformation of carbides contribute to microstructural degradation, as M₆C carbides are less effective than M₂₃C₆ in binding carbon at grain boundaries. This results in unfavourable changes in the alloy’s microstructure, which in turn weakens its corrosion and oxidation resistance.

The expansion of the phase γ' particles leads to the loss of their stability, resulting in coagulation of some particles and dissolving of others. That process occurs above certain temperatures and heating time, characteristic for a given phase. According to the test results, after the temperature exceeds 1223 K and after an even relatively short exposure time, an intensive growth of the γ’ precipitate occurs due to the bonding of fine-grained cubic phase γ’ molecules into lamellas. This leads to the loss of cubic shape stability and the formation of irregular and undulated lamellas. This conclusion is also confirmed by the results in [34]. A similar conclusion was drawn by the authors of [25, 27, 35]. Based on the example of the Udimet 700 alloy, lamellar-form precipitates above a temperature of 1093 K significantly deteriorate the yield strength. The kinetics of phase γ' precipitation depends on the supersaturation of the matrix, i.e., phase y, with alloy elements. Exudation shape depends on the degree of mismatch between their grid with the warp grid. The authors of [34, 36] concluded that the precipitates of the γ’ phase are coherent with the matrix, and the morphology is related to the degree of mismatch between phase γ and phase γ’ lattice parameters. Furthermore, they found that the phase γ, with mismatch of the grid Δa = 0.2% exudes in spheroid shape, at Δa = 0.5 – 1% takes the cuboid form and at Δa = 1.2% - tile form. A number of alloy properties depend on the phase y’ precipitate shape and amount. These include, e.g., the value of yield strength of weakening of adverse action of brittle phases – e.g., Laves. The exudation hardening theory shows that the factors deciding the hardening degree are diameter of phase γ' particles and distance between them. These parameters depend on the growth rate (controlled by volumetric diffusion) and coagulation of these molecules. Phase γ' chemical composition significantly impacts the value of its aγ' lattice and the associated degree of mismatch between Δa and the aγ lattice matrix. Wherein Δa = (aγ-aγ')/aγ. This impact phase γ’ precipitate morphology and its durability range. It turns out that the degree of mismatch of phase lattice parameters is a function of temperature. According to [34], the highest high-temperature creep resistance is exhibited by alloys with positive phase lattice mismatch. The chemical composition, morphology and microstructural arrangement of phase γ’ precipitates have a decisive impact on alloy strength properties.

According to [25], the change in R_0.2 and R_m strength properties for an analogous EI-867 alloy and for various test temperature values is of similar nature. A minor change in these two parameters is observed up to a temperature of 473 K. The value slightly increases up to approximately 673 K, followed by low fluctuation up until a temperature of ca. 1073 K, above which a clear reduction in tensile strength and yield strength can be seen.

6. PRACTICAL IMPLICATIONS OF THE FINDINGS AND THEIR LIMITATIONS

The tested turbine element, due to its core material, is classified as a nickel-based alloy, polycrystalline alloy with reduced chromium content and titanium-free. The lower chromium content requires the use of a coating – a coating that increases heat resistance properties and operating temperature by about 100 K. The tested object can be representative of a wide range of polycrystalline alloys with a similar chemical and volumetric composition of the γ' phase, which are used in heat exchangers, cooling systems or renewable energy systems. Certain findings, despite limitations resulting from tests conducted in laboratory conditions, have practical significance in relation to the group of alloys and coated materials characterized above:

Several selected operational aspects that affect the limitations in formulating generalizations of the discussion of the results of the conducted laboratory experiment:

7. CONCLUSIONS

Gas turbine blades are exposed to high-temperature corrosion and cyclic thermal stresses, which lead to surface damage and thermomechanical fatigue. Prolonged exposure to this process, along with the adverse effects of elevated temperatures, causes blade overheating (significant microstructural degradation of the superalloy). Under operational conditions, this results in the formation of microstructural zones with locally diminished mechanical properties-namely, reduced heat resistance and creep resistance of the alloy. Excessively high temperatures relative to the nominal operating temperature, combined with tensile stresses during rotation, lead to creep in the superalloy. An important aspect of this issue is an attempt to determine the extent of modification in the state of the coating and the blade alloy material due to the effects of supercritical temperatures. Additionally, to approximate real conditions, the experiment was conducted in an exhaust gas environment. The research conducted could contribute to defining criteria for determining the suitability or unsuitability of the tested turbine element for further operation, based on information obtained through endoscopic devices without the need to dismantle the blades from the turbine. The technical condition of the blades can be indirectly assessed, i.e., based on the correlation between the light signal reflected from the coating surface (or, in its absence, the alloy surface) and the microstructural state of the alloy/coating.

The article describes the material changes (alloy and coating) in gas turbine blades of jet engines caused by high temperatures. Additionally, to simulate real conditions to some extent, the experiment was conducted in an exhaust environment. Microstructural studies performed, along with quantitative and qualitative results obtained, help in identifying significant material changes in both the coating and the alloy. They represent an attempt to comprehensively describe the material modifications in the blades (demonstrating differences compared to the material characteristics of a new blade). Section 6 presents practical implications of the results and certain limitations. The generalizations in this section attempt to point out potential applications in engineering practice while also considering certain limitations due to the experimental conditions and the interpretation of results in the context of real, complex working conditions of superalloys. The reflected light signal (colour) is influenced by factors such as the position and nature of the light source, as well as the surface roughness and chemical composition (see section 3). In terms of gas turbine blade durability, this material criterion is a decisive factor in defining strength properties (section 4 and discussion of results, see section 5).

Further work will continue in the area of material characterization, focusing on single-crystal alloys and various types of coatings. On the other hand, diagnosing blades using videoscopes without removing them from the turbine remains challenging. The quality of the image obtained from the videoscope depends on the lighting and the device itself. Improper lighting settings, light reflections, or variable lighting conditions can affect the image coloration, which may lead to incorrect conclusions regarding the condition of the coating or the alloy surface.
